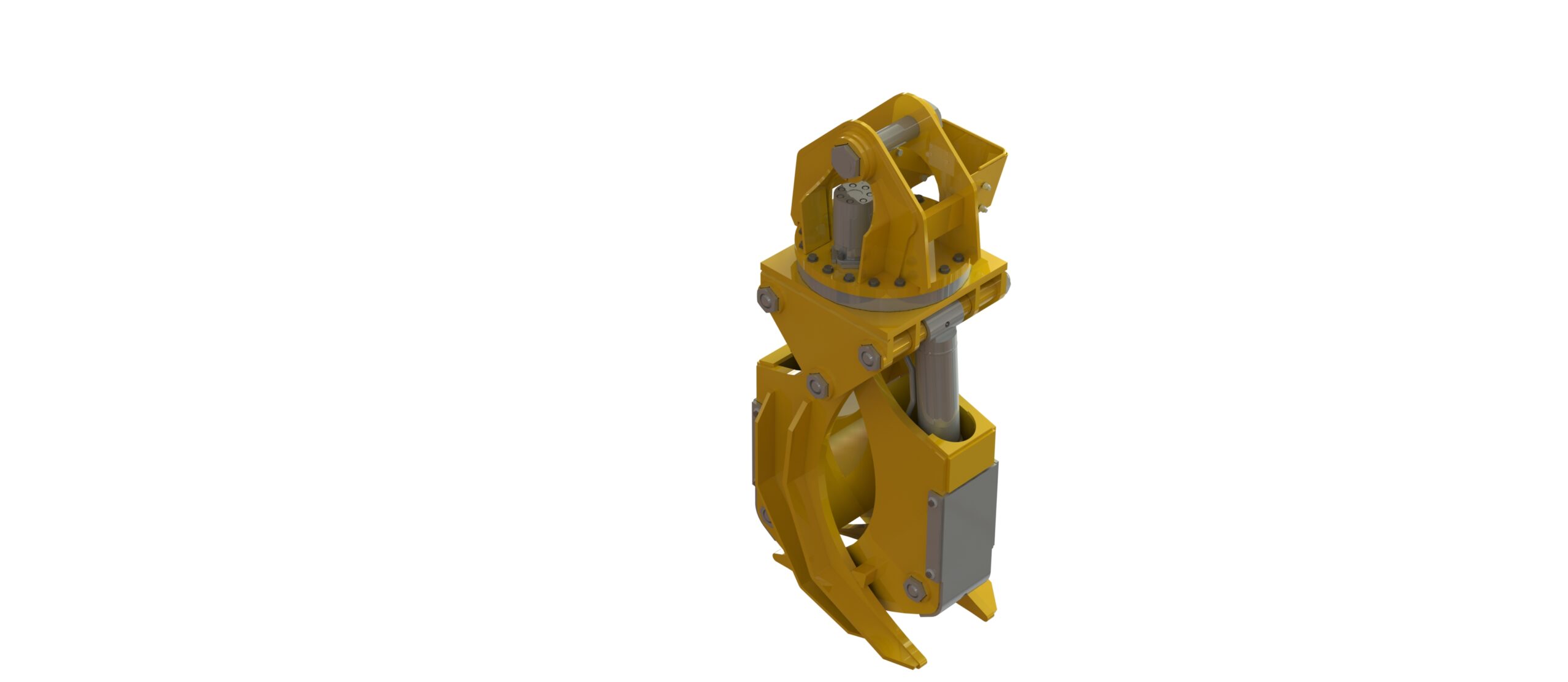

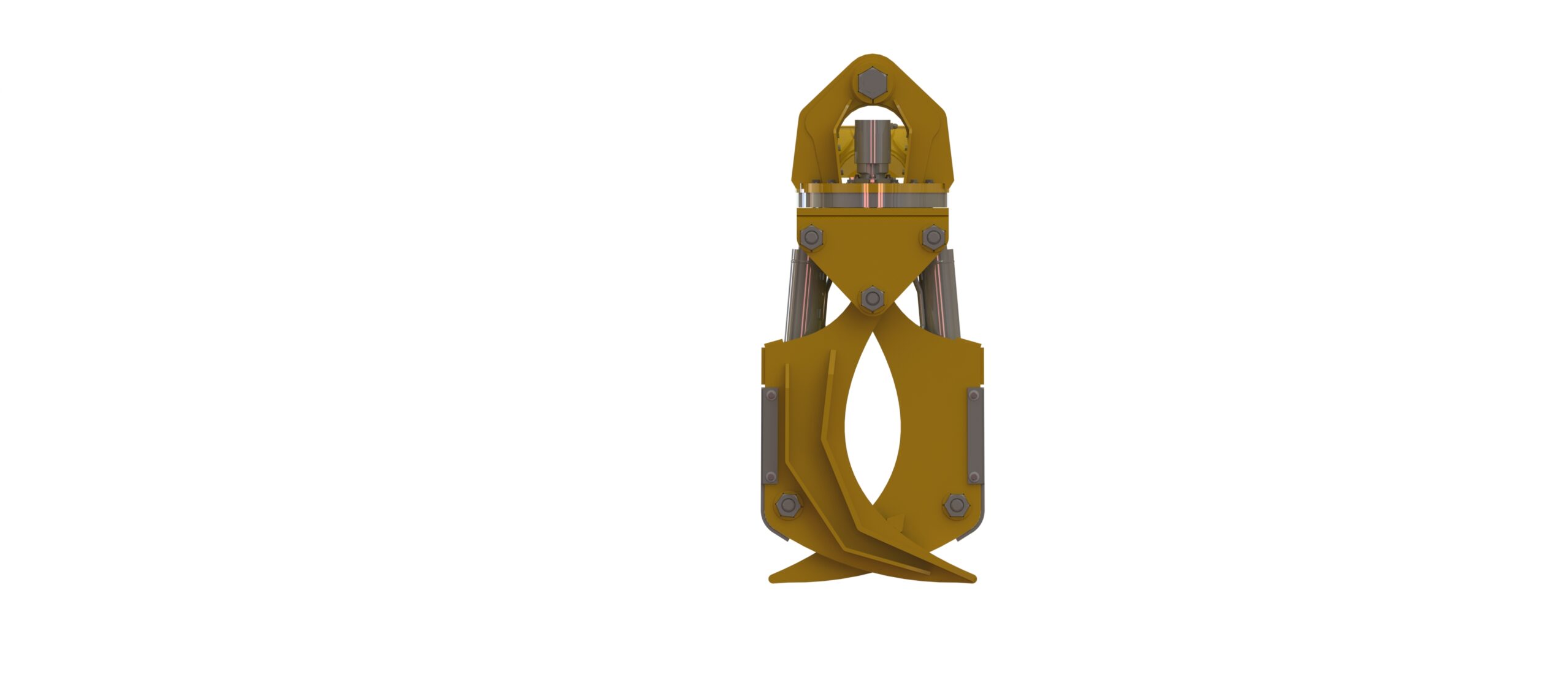

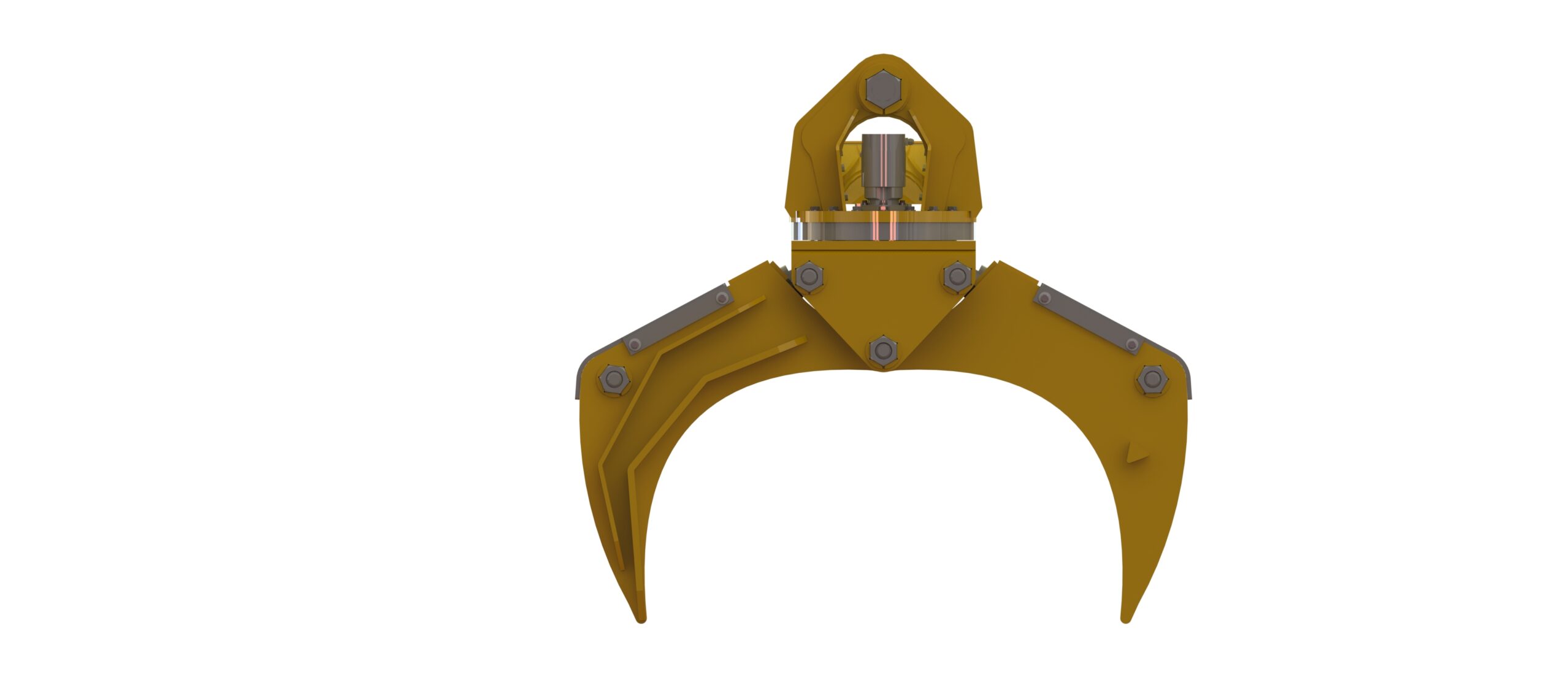

The Builtrite, Heavy Duty Log Grapple is designed for single and bulk handling of logs, whether for loading /unloading applications and/ or pull through de-limbing. The finest materials are used to provide maximum durability, exceptional performance and low maintenance, reducing your downtime. Key features include:
• 360° continuous rotation on a heavy duty, 20” (508mm) bearing with advanced, high torque motor (No case drain required) and a high pressure hydraulic swivel.
• Outer arms with dual gussets that run their entire length for added strength.
• Heavy duty, bolt-on cylinder guards.
• High tensile steel used throughout.
• Oversized, hardened cylinder and arm pivot pins with replaceable bushings.
• High pressure cylinders.
• Easily accessible, yet well protected grease zerks.
• Mechanical stops on grapple opening to prevent cylinders from bottoming out.
